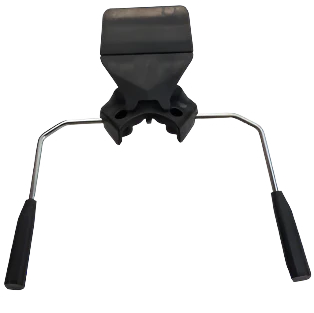

EVO System automatic brakes by ATK SKAUT

EVO System automatic brakes by ATK SKAUT

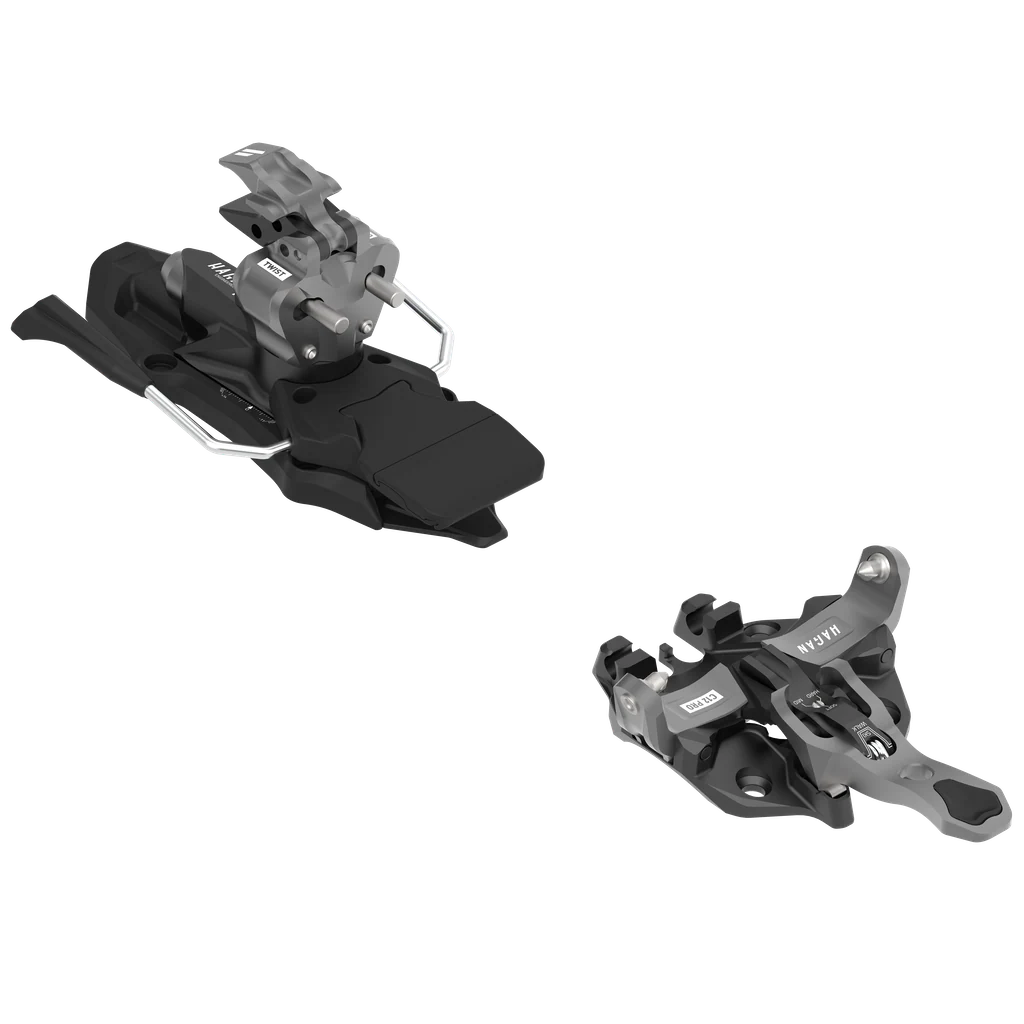

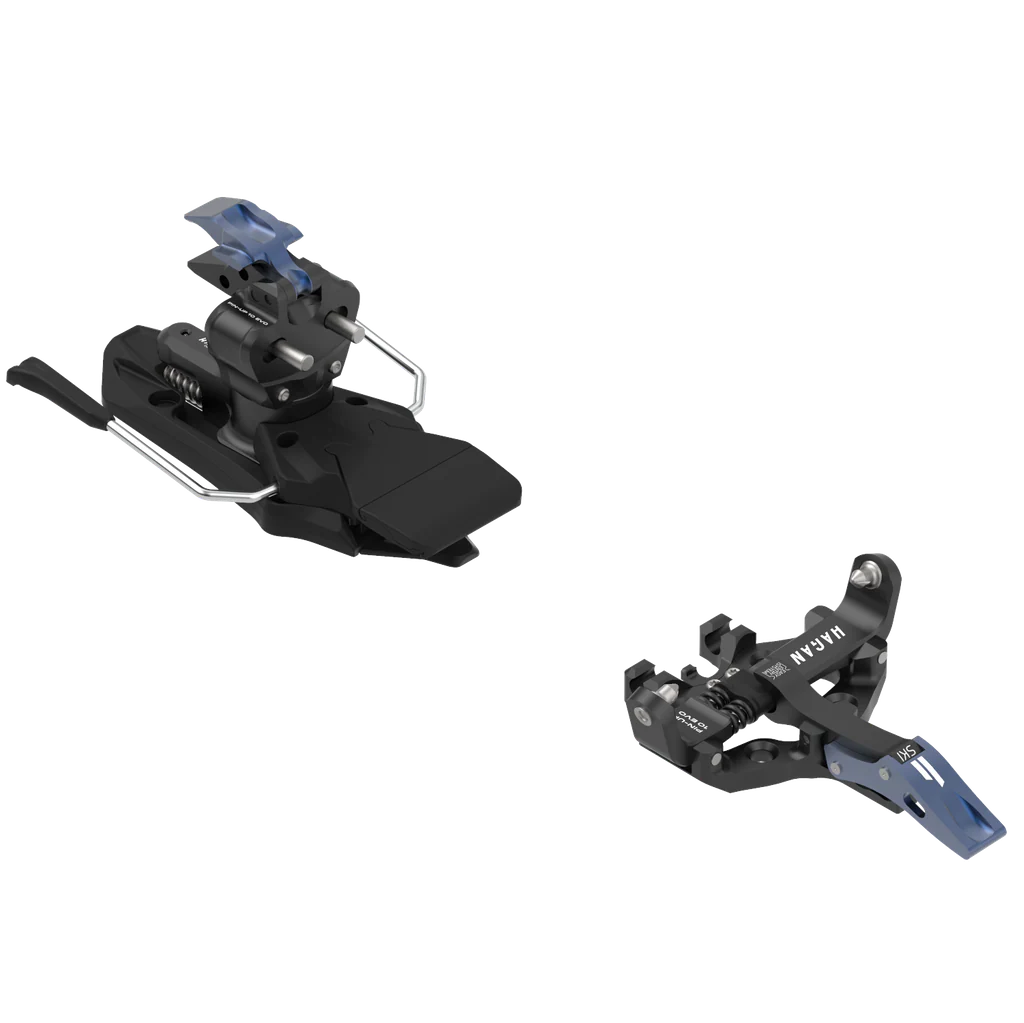

Brakes for HAGAN Core 12Ā EVOĀ &Ā Pin Up 8/10 EVOĀ bindings

The EVO system ski brakes on the HAGAN Core 12Ā EVO andĀ Pin Up 8/10Ā bindings are heelĀ mounted. They are held in retracted position by a catch mechanism, not by the heel tower itself. This means the heel tower doesn't need to be built to hold down the brake, is lighter, and turns more freely without impact on the lateral release.Ā To retract the brakes, just twist the heel to climbing position and step down. The brakes never need to be touched by your hands.

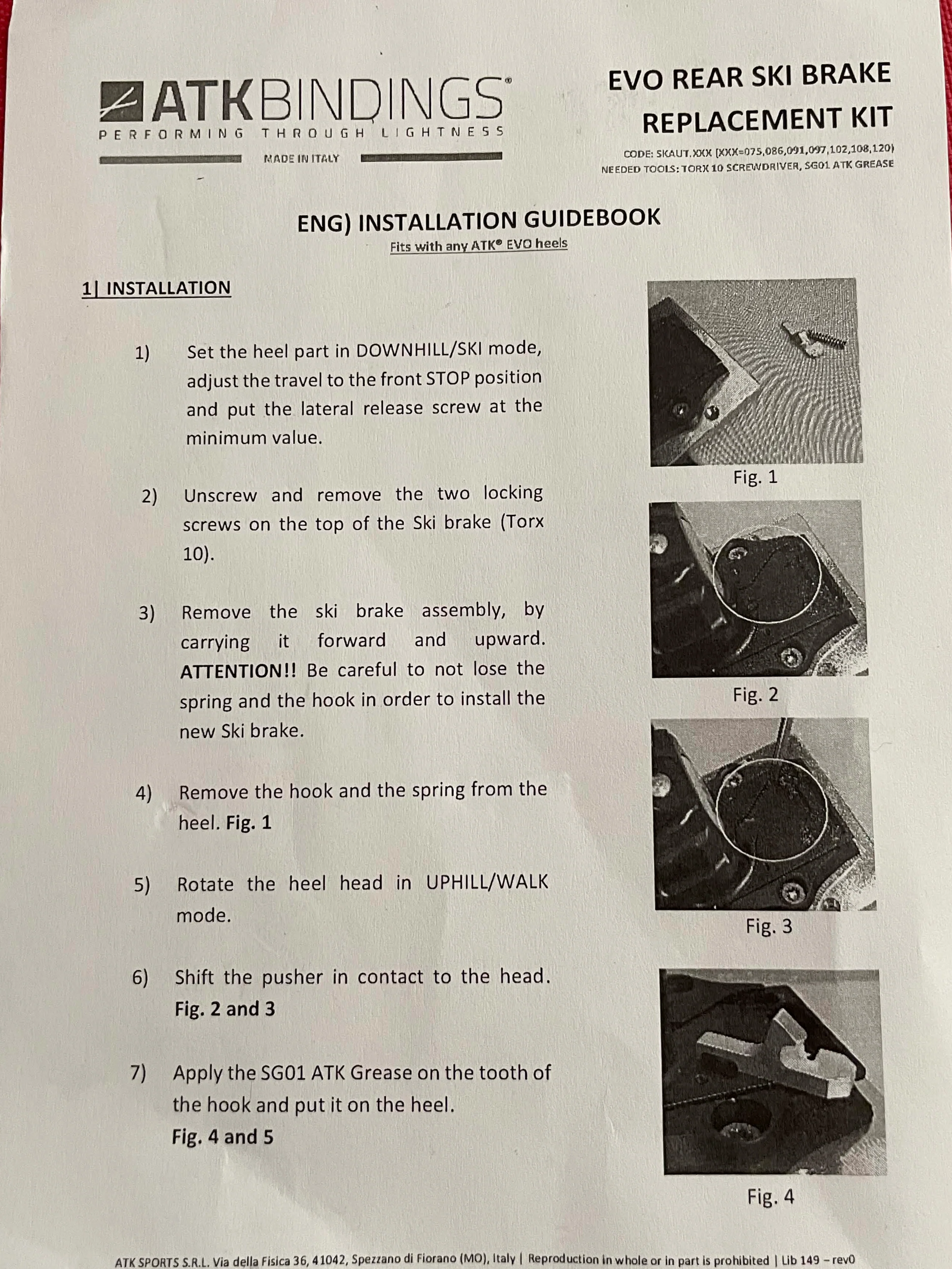

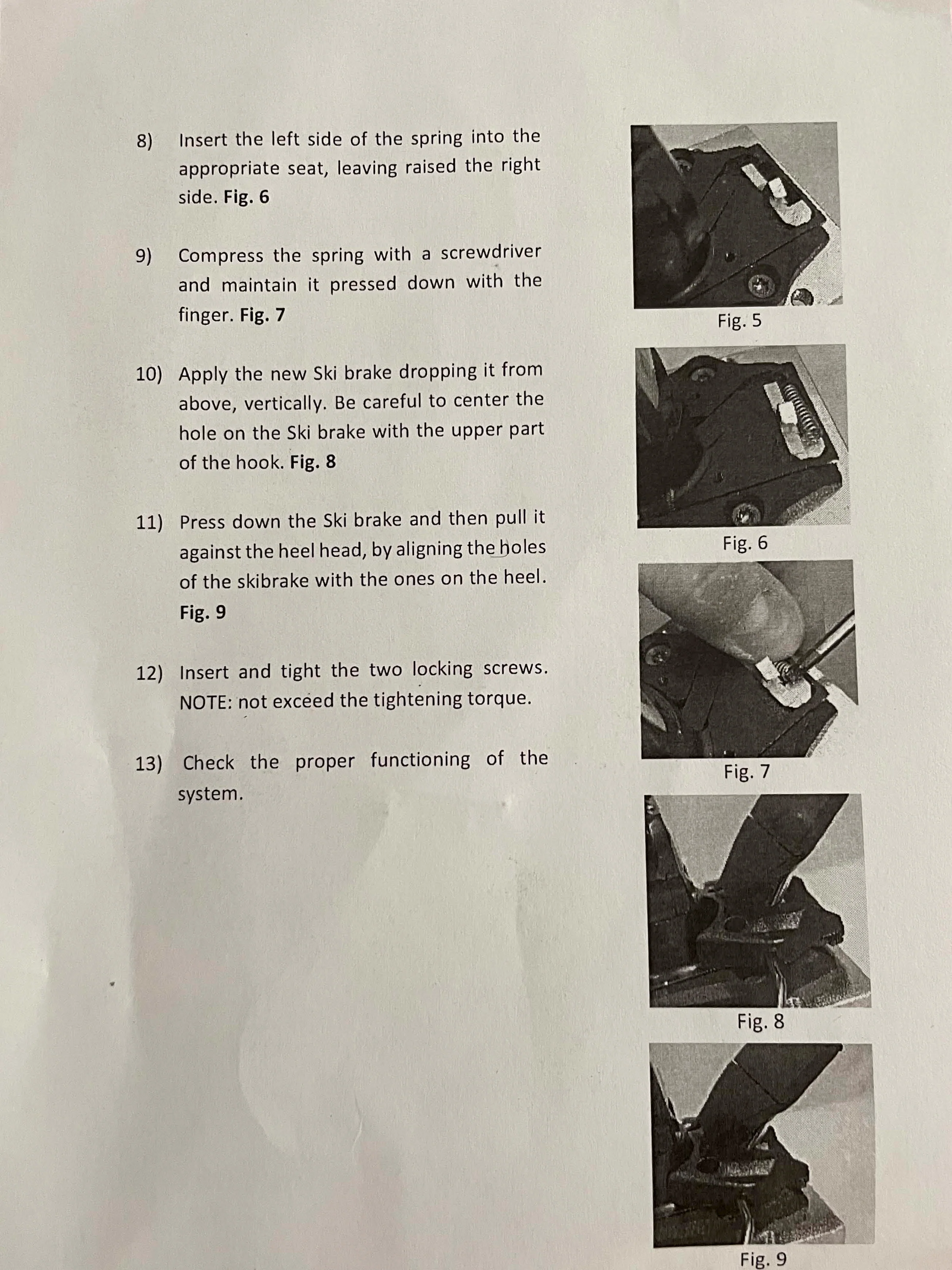

They are easily installed viaĀ 2 Torx 10 screws.

  • INTEGRATED REAR-BRAKE SYSTEM Ā®
  • 6 sizes: 86, 91, 97, 102, 108 and 120 mm
  • Injection-molded POM thermo-plastic
  • Stainless steel
  • Also work with ATKĀ Raider 11 and Raider 13Ā EvoĀ andĀ FreeRaider 15 EvoĀ bindings.
  • Sold in sets of two.


    • Spare/replacement brakes do not come with the catch hook, Torx 10 screws and springs. Save and use them from your current brakes.

    Select Brake Width (mm)
    From $150.00

    Original: $500.00

    -70%
    EVO System automatic brakes by ATK SKAUTā€”

    $500.00

    $150.00

    Product Information

    Shipping & Returns

    Description

    Brakes for HAGAN Core 12Ā EVOĀ &Ā Pin Up 8/10 EVOĀ bindings

    The EVO system ski brakes on the HAGAN Core 12Ā EVO andĀ Pin Up 8/10Ā bindings are heelĀ mounted. They are held in retracted position by a catch mechanism, not by the heel tower itself. This means the heel tower doesn't need to be built to hold down the brake, is lighter, and turns more freely without impact on the lateral release.Ā To retract the brakes, just twist the heel to climbing position and step down. The brakes never need to be touched by your hands.

    They are easily installed viaĀ 2 Torx 10 screws.

  • INTEGRATED REAR-BRAKE SYSTEM Ā®
  • 6 sizes: 86, 91, 97, 102, 108 and 120 mm
  • Injection-molded POM thermo-plastic
  • Stainless steel
  • Also work with ATKĀ Raider 11 and Raider 13Ā EvoĀ andĀ FreeRaider 15 EvoĀ bindings.
  • Sold in sets of two.


    • Spare/replacement brakes do not come with the catch hook, Torx 10 screws and springs. Save and use them from your current brakes.
